Bedding Carton Cube, Pallet Pattern and Container Utilization Planning

Bedding is light relative to its volume, so a small change in compression, fold, retail pack or carton dimensions can alter shipping space and landed-cost comparisons. Spreadsheet cube calculations are necessary, but they are not enough when dimensions come from prototypes, carton bulge is ignored, pallet overhang is accepted silently or mixed SKUs cannot form the assumed layer pattern. Container utilization also depends on whether the shipment is floor loaded or palletized, the loading sequence, weight distribution, carton strength, moisture controls and destination unloading method. Buyers should separate nominal unit cube, measured packed cube, trial pallet cube and usable container plan. Each number has a different evidence source. This guide focuses on planning and data handoff, not on promising a freight rate or a fixed number of cartons in every container. Equipment dimensions, carrier rules, road limits, loading practices and product configuration can change. The supplier, forwarder and buyer need to validate the actual shipment and applicable constraints before booking and loading. A controlled physical trial gives the commercial team better inputs and prevents an optimistic pack plan from becoming a last-minute split shipment.

1. Freeze the production pack master

Utilization starts with the exact product, compression and carton build

List SKU, size, color, component count, fill or product mass, fold, compression method, retail packaging, inserts, case pack, carton material and closure. Record packed dimensions and gross/net mass after a defined settling period using production-representative materials. Prototype values should be labeled as estimates until confirmed. Link the configuration to the packaging, barcode and carton approval guide so logistics uses the same released build as production.

Measure several packs and cartons across relevant SKUs, especially the largest, heaviest and most variable constructions. Record maximum observed dimensions or another pre-agreed planning basis rather than choosing the smallest sample. Include carton bulge, handles, straps, labels or closure features that affect stacking. If a compression ratio is changed to improve cube, rerun product recovery and packaging validation instead of treating the change as a spreadsheet-only decision.

• Identify the exact SKU, fold, pack, case pack and carton revision.
• Measure production-representative cartons after settling.
• Include bulge and external features in planning dimensions.
• Revalidate product and pack when compression changes.

2. Calculate floor-load and pallet scenarios transparently

Show assumptions, unused space and orientation constraints

Calculate carton volume from controlled external dimensions and show units. Model permitted orientations, layers, columns and mixed-SKU groups without assuming cartons can be rotated when labels, handles or product settling prevent it. For floor loading, include planned gaps, door clearance and loading sequence. For palletized shipping, identify pallet size, height, mass, overhang rule, layer pattern, slip sheets, corner protection and wrap.

Keep theoretical geometric fit separate from the operational plan. A mathematically perfect count may block the door, create unstable columns or make destination SKU access impractical. Use the mixed-SKU assortment guide when allocation, not maximum density, controls the sequence. State whether utilization means percent of internal volume, booked equipment, pallet footprint or another metric so teams do not compare different definitions.

• Show carton units, orientations and layer assumptions.
• Separate floor-load and palletized plans.
• Include clearance, overhang, wrap and destination access.
• Define the utilization metric before comparing scenarios.

3. Run a physical carton and pallet trial

Real stacks reveal bulge, compression and instability

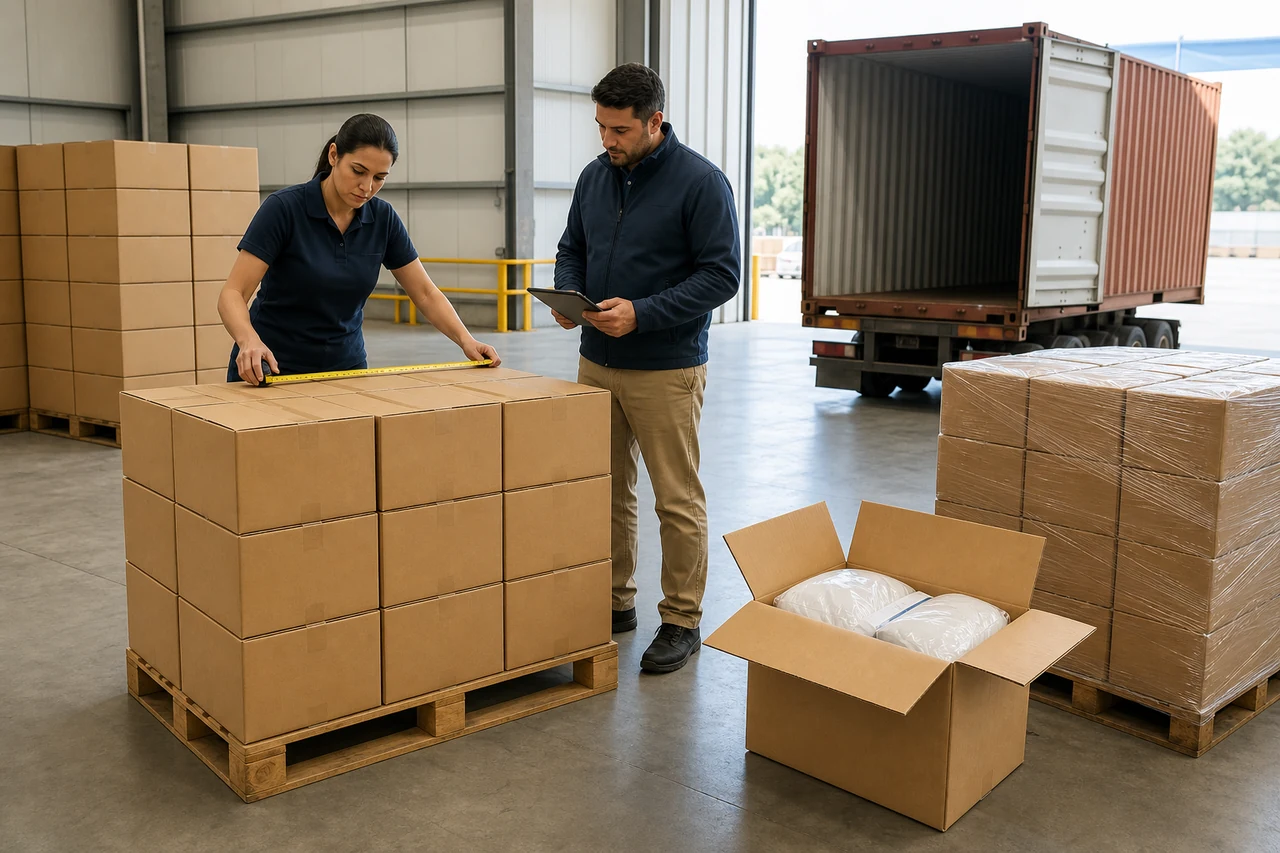

Build a trial using production-representative cartons and the intended pallet or floor pattern. Measure layer and completed-stack dimensions, squareness, overhang and leaning. Observe lower-carton compression, corner crush, closure movement and pack shift. Use the carton compression and stacking guide to connect stack observations with the selected evidence route, but do not infer test performance from one warehouse stack alone.

Handle the trial through the expected staging steps, including permitted trolley or pallet movement, wrap and label access. If the destination requires pallet exchange, racking or particular fork access, include those constraints. Photograph each layer pattern before it is hidden. The physical trial should update measured dimensions and counts in the logistics master; otherwise the spreadsheet remains disconnected from the approved stack.

• Build the trial with released packs, cartons and pallet hardware.
• Measure completed layers, stack height, overhang and lean.
• Inspect lower cartons, closures and product shift.
• Update planning data from the approved physical pattern.

4. Validate container and route constraints

Capacity is usable only when loading, transit and unloading remain controlled

Confirm actual equipment type and internal dimensions with the forwarder or carrier documentation used for the booking. Review door opening, payload, weight distribution, lashing or restraint, pallet access and destination unloading method. Follow applicable carrier and transport rules. Use the container loading and moisture-control plan for dryness, inspection and loading evidence; utilization planning does not replace those controls.

Model split quantities and residual cartons before shipment. If the full order does not fit the selected equipment under the approved pattern, choose an authorized allocation or booking change rather than improvising unsafe stacks. Link decisions to the split-shipment and destination allocation guide. Commercial teams should treat freight cost and schedule as current quotations, not permanent values embedded in an article or technical specification.

• Verify booked equipment and route-specific constraints.
• Check door, payload, distribution, restraint and unloading access.
• Keep moisture and container-condition controls in the load plan.
• Authorize residual and split quantities before loading day.

5. Control shipping data and change triggers

One approved data set must reach quotation, booking and warehouse teams

Maintain a logistics master with SKU, pack and carton revision, measured dimensions, gross/net mass, case pack, pallet pattern, floor-load scenario, equipment basis, quantity and validation status. Send the same controlled fields through the freight booking data handoff. Mark estimates and confirmed values clearly, and time-stamp updates so the forwarder does not book against an obsolete sample.

Define triggers for recalculation: product or fill change, compression change, retail-pack revision, case-pack change, carton supplier or grade change, pallet change, destination allocation or equipment change. Retain trial photographs and the approved layer map. Buyers can review the shipping route, request a packed sample and include destinations and loading preferences in the buying brief. Final counts remain subject to the validated shipment, not a theoretical universal formula.

• Publish one revision-controlled logistics master.
• Mark estimated and physically confirmed inputs separately.
• Recalculate after any product, pack, pallet or equipment change.
• Retain layer maps, trial data and authorized shipment decisions.
