Hotel Shower Curtain Hook Spacing, Weighted Hem and Tub-Fit Trial

A shower curtain is a simple sewn panel only when it is viewed away from the bathroom. Once installed, track length, hook type, tub or shower-tray geometry, side returns, ceiling height, water controls and housekeeping practice all affect whether the curtain hangs cleanly and contains splash. Ordering by a generic width and drop can create exposed end gaps, a hem that drags in the tub, uneven folds, overloaded eyelets or a panel that interferes with fittings. The procurement brief should therefore describe the track-and-curtain system, not only the fabric. A controlled room trial connects finished measurements and attachment spacing to the actual opening, while an agreed care route checks whether the panel still hangs and folds as intended after processing. Weighted hems, magnets and bottom components also need explicit construction and corrosion or care compatibility review rather than a visual reference alone. This guide provides a practical approval route without claiming that one overlap, weight or material fits every property. The correct values depend on the named bathroom, hardware, water-control objective, cleaning method and local safety requirements, all of which the buyer should confirm before bulk release.

1. Map the bathroom, track and operating clearances

Start with installed geometry rather than a standard curtain name

Record the room type, tub or tray dimensions, track shape, installed track length, mounting height, wall returns, hook or carrier model and the position of controls, grab bars and accessories. Straight, L-shaped and ceiling tracks create different finished-width and folding behavior. Measure representative rooms because nominally identical bathrooms can vary after tile, sealant and hardware installation. The hotel mock-up room approval record offers a useful structure for naming the exact room and fixtures used.

Identify the guest-entry side, housekeeping pull direction and the curtain's parked position. Define required clearance from the tub base or floor, the intended side overlap and any zone that must remain accessible. Do not assume a longer panel automatically improves containment: excess fabric can bunch around fittings or remain wet. Link the curtain to the broader hospitality project brief so room counts, variants, replacements and phased delivery are visible.

• Measure installed track path, mounting height, tub and tray geometry.
• Name the hook or carrier system and the curtain's pull direction.
• Record controls, grab bars and fittings that affect clearance.
• Use representative rooms when installation dimensions vary.

2. Engineer finished width, drop and side overlap

Fullness must work with the track and containment objective

Specify finished width and drop after the agreed conditioning state, together with the measurement method and tolerances. Width should account for the installed track path, desired folds, carrier spacing and side return. Drop should be measured from a named track or hook reference to a named tub or floor reference. Draw the intended closed position and measure both ends; a single center measurement can miss sloped tracks or uneven installation.

Review overlap at the wall and entry side while the curtain hangs naturally without stretching. Check whether water-facing surfaces, liners or paired panels require independent dimensions. If a liner and decorative outer panel are used, define their relationship, attachment and care route separately. The dimensional tolerance and shrinkage planning guide helps keep finished and post-care requirements distinct rather than treating the prewash size as the only control.

• Define finished width and drop from named hardware references.
• State fullness and overlap as project decisions, not assumptions.
• Measure both sides and the center in the installed condition.
• Separate liner and outer-panel dimensions when both are used.

3. Control header reinforcement and hook spacing

Attachment geometry distributes load and determines the folds

Record header depth, reinforcement material, fold direction, eyelet or buttonhole construction, attachment count and center-to-center spacing. The first and last attachment positions control the end gaps, so dimension them from finished edges rather than allowing equal spacing to be guessed during sewing. Check compatibility with the named hook or carrier, including opening size, thickness and ease of removal for laundry.

Inspect the header under the curtain's own wet or dry handling condition agreed for the trial. Look for local distortion, skipped attachments, sharp hardware contact and uneven fold distribution. Where metal or plated components are used, request relevant material and care information for the actual item; do not infer corrosion performance from appearance. The attachment-strength guide is a related reference for planning evidence, but the method and load need to match the shower-curtain component.

• Dimension first, last and intermediate attachment positions.
• Specify header reinforcement and the actual hook interface.
• Check fold distribution without forcing the panel into position.
• Review component and care evidence for the supplied hardware.

4. Approve weighted-hem and bottom-edge behavior

Bottom components must hang correctly without creating a care problem

Describe the bottom construction: hem depth, enclosed weight tape, discrete weights, magnets or an unweighted finish. Record component identity, position, enclosure method and allowable movement inside the hem. Review contact with the tub or tray, floor clearance, drying behavior and the possibility of hard components striking finishes. If magnets are intended, confirm the actual receiving surface in the room mock-up instead of assuming all tubs respond the same way.

Run the planned wash or cleaning sequence on the sample, then inspect component retention, edge torque, staining, corrosion evidence, noise, curtain drape and hem drying. The hotel linen wash-trial guide helps preserve load and care identity. Report observations for the evaluated sequence without turning a limited trial into an unlimited service-life promise.

• Identify every weight or magnet and its enclosure method.
• Check tub contact, floor clearance and guest-facing hard points.
• Repeat the installation after the documented care sequence.
• Record retention, drape, edge torque and drying observations.

5. Run the room trial and translate it into bulk inspection

Approval is the installed result plus a repeatable measurement sheet

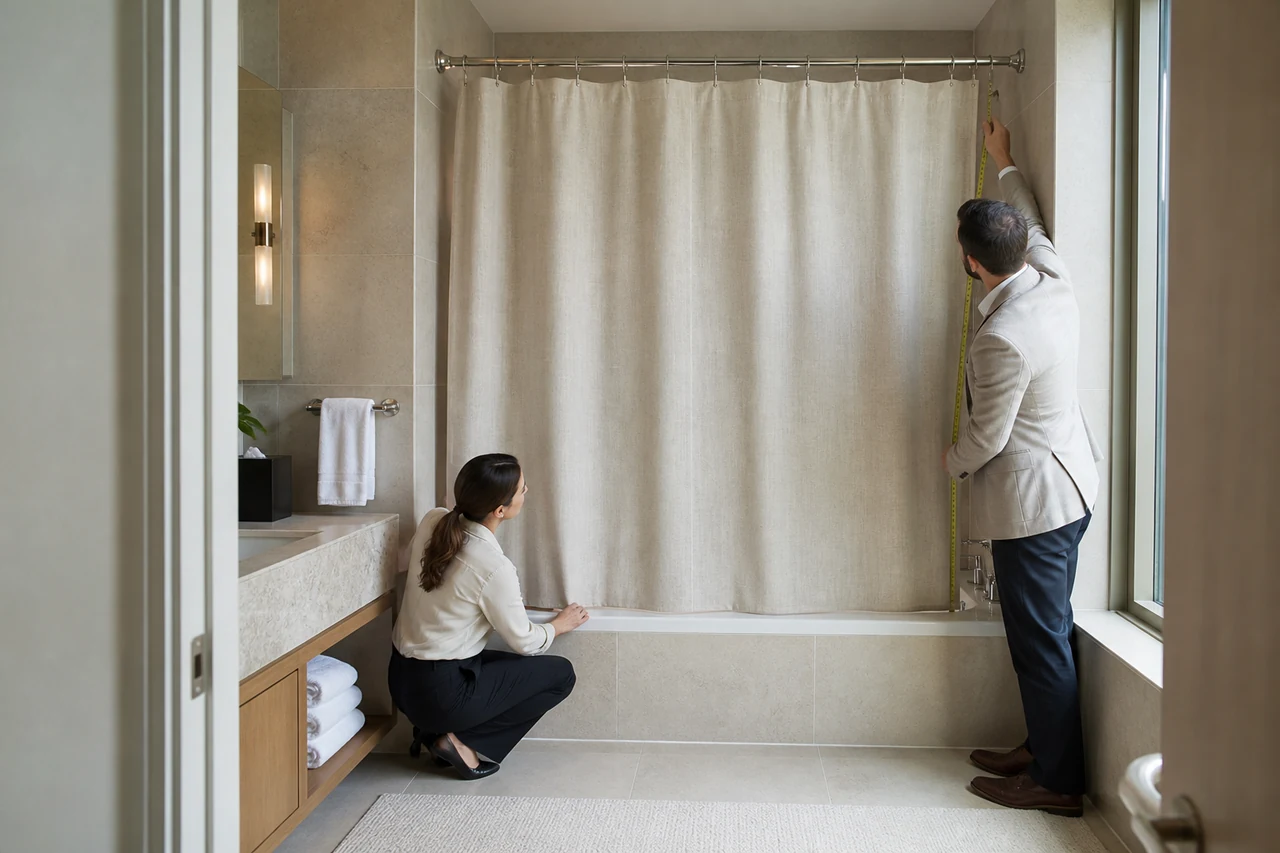

Install the exact sample on the actual or controlled representative hardware. Ask housekeeping staff to open, close, park, remove and reinstall it using normal practice. Check side gaps, control access, tub clearance, folds, snag points and visual presentation. Record room identity, track and hook references, curtain revision and measured positions. A short controlled splash review may be included only when the property defines a safe method and acceptance purpose; the textile alone should not be described as guaranteeing waterproof containment.

Build bulk inspection from the approved sample and room record: finished dimensions, attachment count and spacing, header reinforcement, bottom-component location, workmanship, packaging orientation and lot identity. Use the final inspection checklist to connect findings to shipment disposition. Buyers can request an installed-size sample, review bath textile directions and submit room geometry in the project brief. Reopen approval if the track, hook, tub, material or care route changes.

• Install and handle the sample on the named room hardware.
• Record gaps, clearances, folds and housekeeping observations.
• Inspect bulk against the approved attachment and hem map.
• Reapprove affected fields when room hardware or care changes.
