Curtain Grommet Spacing, Pullout and Panel-Pair Inspection Guide

A grommet curtain can meet its nominal width and drop yet still hang poorly because the eyelets were mapped from an unclear datum, set into an unstable heading, or divided differently between the two panels. A buyer therefore needs more than a component color and a finished-size tolerance. The specification must connect the pole and installation envelope, grommet dimensions, center positions, end offsets, reinforcement, setting quality, attachment review and panel-pair appearance. This guide addresses grommet or eyelet headings used on curtains and drapes. It does not replace the broader fabric, lining, light-control, care or installation decisions in a complete curtain brief, and it does not prescribe one universal spacing or pullout force. Those values depend on the selected component, fabric assembly, panel scale and agreed use conditions. The objective is to create a repeatable drawing, sample trial and bulk inspection route that shows whether each component is secure and whether the pair opens, stacks and presents as the approved reference.

Define the grommet heading and installation envelope

Start with the pole, panel and finished presentation

Record the curtain as a complete installed system before fixing the grommet map. Name the pole or rod diameter, usable travel, bracket and finial constraints, wall or track clearance, intended face and return, opening direction, panel overlap where used, and the finished drop reference. State whether the order supplies a single panel or a left-and-right pair and how the buyer identifies each side. The broader hotel curtain procurement guide can structure fabric, lining, fullness, room trial and installation decisions; this article narrows the approval to the grommet heading and matched-pair outcome.

Create one dimensioned heading drawing that identifies grommet internal opening, external size, component profile, quantity, top margin, end center positions and every center-to-center interval. Use named measurement datums rather than a photograph with approximate arrows. Show the relationship between the first and last grommets and the finished side hems because end placement influences the leading edge, wall return and fold direction. If fullness or finished width changes, recalculate and approve the map rather than stretching the previous spacing across a new panel. Preserve the drawing revision beside the buyer specification toolkit inputs so quotation, sample and inspection teams work from the same geometry.

• Record pole diameter, usable travel and installation clearances.
• Identify single-panel, left-panel and right-panel configurations.
• Dimension every grommet position from named finished-edge datums.
• Reapprove the map when panel width, fullness or heading design changes.

Control the grommet, heading layers and setting operation

Treat attachment strength as an assembly property

Specify the complete grommet component by approved sample or controlled part reference, including construction, internal and external dimensions, face and back appearance, finish, joining method and any directional detail. Then list the fabric layers passing through the heading: face fabric, lining, heading tape, interlining or local reinforcement where applicable. A component that is secure in a dense reinforced header may not behave the same way in a lighter or more open fabric. Keep the approved fabric and reinforcement identities linked to the bill of materials, and route any substitution through supplier change control instead of assuming equal composition produces equal holding performance.

Define how the opening is cut, how layers are aligned, which face receives each component half and how setting pressure or tooling is controlled by the supplier. The finished sample should lie flat around the grommet without trapped folds, exposed raw cuts, cracked parts, sharp or unfinished contact surfaces, incomplete engagement or visible damage to nearby yarns beyond the agreed reference. Attachment principles from the snap and button attachment guide can help separate component retention from surrounding-fabric failure, but a curtain grommet needs its own fixture, load direction and acceptance record. Freeze the actual heading cross-section and set component, not only a catalog image.

• Approve the complete front-and-back grommet component identity.
• List every fabric, tape and reinforcement layer in the heading.
• Document opening preparation, orientation, tooling and setting sequence.
• Inspect component engagement and surrounding fabric as one assembly.

Measure spacing, alignment and panel-pair symmetry

Control cumulative position as well as individual intervals

Lay the conditioned panel without stretching it and measure from the defined finished top and side edges to each grommet center. Record top-line alignment, individual intervals, first and last center offsets, grommet count and the total span between end centers. Reviewing only one interval can hide cumulative drift that moves the final eyelet or changes the way the leading edge turns. Use project-approved tolerances derived from the drawing and sample rather than introducing an unverified universal number. Connect heading measurements to the controlled seam and hem construction in the seam and stitch specification guide, because uneven top finishing can make correctly punched centers appear misaligned after hanging.

Compare the left and right panels as a serialized pair. Confirm finished width and drop, grommet count, end-fold direction, face orientation, hem position, pattern placement, shade and the visual height of all eyelets when the panels share one pole. Patterned goods should follow an approved repeat and panel-matching decision using the pattern placement and panel-matching guide. Solid colors still require pair control: review the shade-band process and, where the room uses materially different light sources, consider the separate multi-light approval workflow. Do not use position measurements to waive a visible pair mismatch.

• Measure every center from the approved finished-edge references.
• Review end offsets, total span and cumulative drift together.
• Match left and right panels by size, orientation, pattern and shade.
• Confirm pair symmetry on one identified pole and hanging setup.

Validate pullout resistance and pole function

Define the load history before interpreting the result

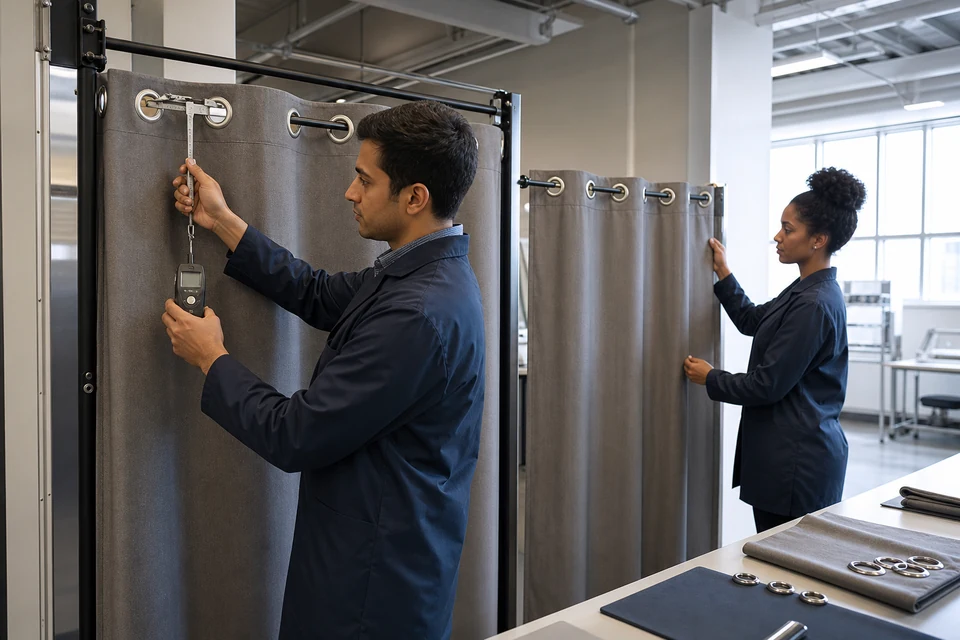

Write a project-specific attachment test that states sample condition, fixture, supported fabric area, load direction, loading approach, hold or cycle sequence where relevant, observation points and failure definitions. Pullout can describe component separation, movement in the cut opening, tearing or distortion of the reinforced heading, so the report must identify what changed rather than recording only pass or fail. Test production-representative assemblies and retain the component lot, fabric lot, reinforcement and sample position. Do not convert a force value from a different component or fabric into a promise for the current curtain, and do not treat an isolated component test as proof of the complete panel's service life.

Follow the attachment review with a pole trial using the specified rod and a representative full panel pair. Install every grommet in sequence, then open, close and stack the curtains according to the agreed trial route while observing catching, uneven fold formation, component rotation, fabric abrasion, heading distortion and contact with brackets or finials. Record the hung appearance at open, closed and intermediate positions after the agreed settling period. Compare the result to the approved golden sample, but keep the test setup and observations in the approval file so appearance is not reduced to memory or an unscaled image.

• State fixture, load direction, sequence and failure definitions.
• Trace tested assemblies to component, fabric and reinforcement lots.
• Run opening, closing and stacking trials on the specified pole.
• Record component retention and hung-panel behavior separately.

Release bulk production by component lot and panel pair

Carry the approved map into in-process and final inspection

The pre-production record should freeze the heading drawing, grommet reference, fabric and reinforcement layers, setting method, pair orientation, approved pullout procedure and pole-trial sample. Review these items in the home textile pre-production meeting before openings are cut in bulk. In process, verify the first completed headings from each relevant component or fabric lot, then inspect position, engagement and surrounding material at the sampling stages agreed for the order. Link exceptions to the product traceability and lot-coding route so affected pairs can be contained without losing their left-and-right identity.

At final inspection, select complete pairs rather than unrelated single panels and reconcile pair labels, quantities, finished dimensions, grommet count, mapped positions, appearance and packaging orientation. Use the final inspection framework to define sampling and shipment release, while keeping the curtain-specific map and pullout evidence as controlled attachments. Any rework involving a removed grommet, enlarged opening, replacement reinforcement or repaired heading should receive documented reinspection before release. Buyers can contact FY Bedding with the pole dimensions, curtain drawing, fabric assembly, panel-pair plan and required trial route for a scoped development discussion; final criteria remain subject to the buyer-approved sample and project specification.

• Freeze drawing, component, layers, setting and trial method together.
• Verify first bulk headings by relevant fabric and component lot.
• Inspect and pack complete identified pairs rather than loose panels.
• Reinspect repaired or reset grommets before shipment release.
