Bedding Seam-Allowance Width and Edge-Trim Inspection Guide

Seam allowance is usually hidden inside the product, yet it helps determine whether stitch formation remains secure, raw edges stay contained and assembled dimensions match the pattern. An allowance that narrows locally may escape a quick face-side inspection, while excessive or uneven trimming can create bulk, shadowing, fraying or weak capture after care. Different joins in one bedding item may need different allowances because fabric layers, seam type, piping, zipper, quilting and turning method vary. Buyers should not apply one number to every seam without a construction map. A useful control defines where the allowance is measured, whether the edge is cut, overlocked, enclosed or pinked, which measurement occurs before and after trimming, and how the inspector opens a sample safely without damaging saleable product. First-piece and in-process checks usually provide more corrective value than discovering hidden construction at final inspection. Destructive seam opening, where needed, should follow a planned sampling and disposition route. This guide separates allowance evidence from general seam appearance and seam-strength testing; each answers a different question and should be linked through the approved specification.

1. Draw a seam map by product zone

Name construction, layers and allowance at every critical join

Mark each seam on a product drawing and assign a code. Record layer count, fabric direction, seam type, stitch type, target allowance, edge treatment, pressing direction and whether the seam is later trimmed, graded or enclosed. A duvet-cover side seam, piped pillow edge, zipper opening and bound quilt edge should not be treated as interchangeable. Use the seam and stitch specification guide for the broader construction record.

Identify critical zones where multiple seams intersect, curves tighten, notches reduce edge width or a closure begins. Define the measurement landmark: distance from cut edge to stitch line, from folded edge to a named stitch, or another clear reference. If overlocking covers the cut edge, state whether the allowance is measured before overlocking, from the knife line, or in the finished seam. This prevents different teams from reporting different numbers under the same field.

• Code every relevant seam on a product drawing.
• State layers, stitch, allowance and edge treatment by code.
• Name intersections, curves and closure ends as risk zones.
• Define the exact edge and stitch landmarks used for measurement.

2. Release cutting and sewing setup with a first piece

Allowance begins at pattern and guide control, not at final inspection

Verify pattern dimensions, notches, cut quality and the relationship between cut-panel size and finished measurements. Confirm machine guide, folder or edge-guide position using the approved fabric stack. Record needle, thread and stitch settings separately because a correct allowance cannot compensate for unsuitable stitch formation. Link panel control to the cutting-yield guide when marker or usable width changes could shift edges or notches.

Make and inspect first pieces at line start, style change, size change, guide adjustment, operator transfer and other defined triggers. Check allowance at straight sections, curves, corners, seam starts and ends. Preserve the first-piece result and authorized corrective action. If trimming happens after sewing, inspect both pre-trim capture and final trimmed condition so the team can tell whether narrow allowance came from feeding, guide position or the trim operation.

• Verify patterns, notches and cut edges before sewing.
• Set guides using the actual layer and seam construction.
• Inspect first pieces at defined change and restart triggers.
• Separate pre-trim seam capture from final edge condition.

3. Inspect seam allowance safely during production

Measure accessible seams and plan any destructive opening

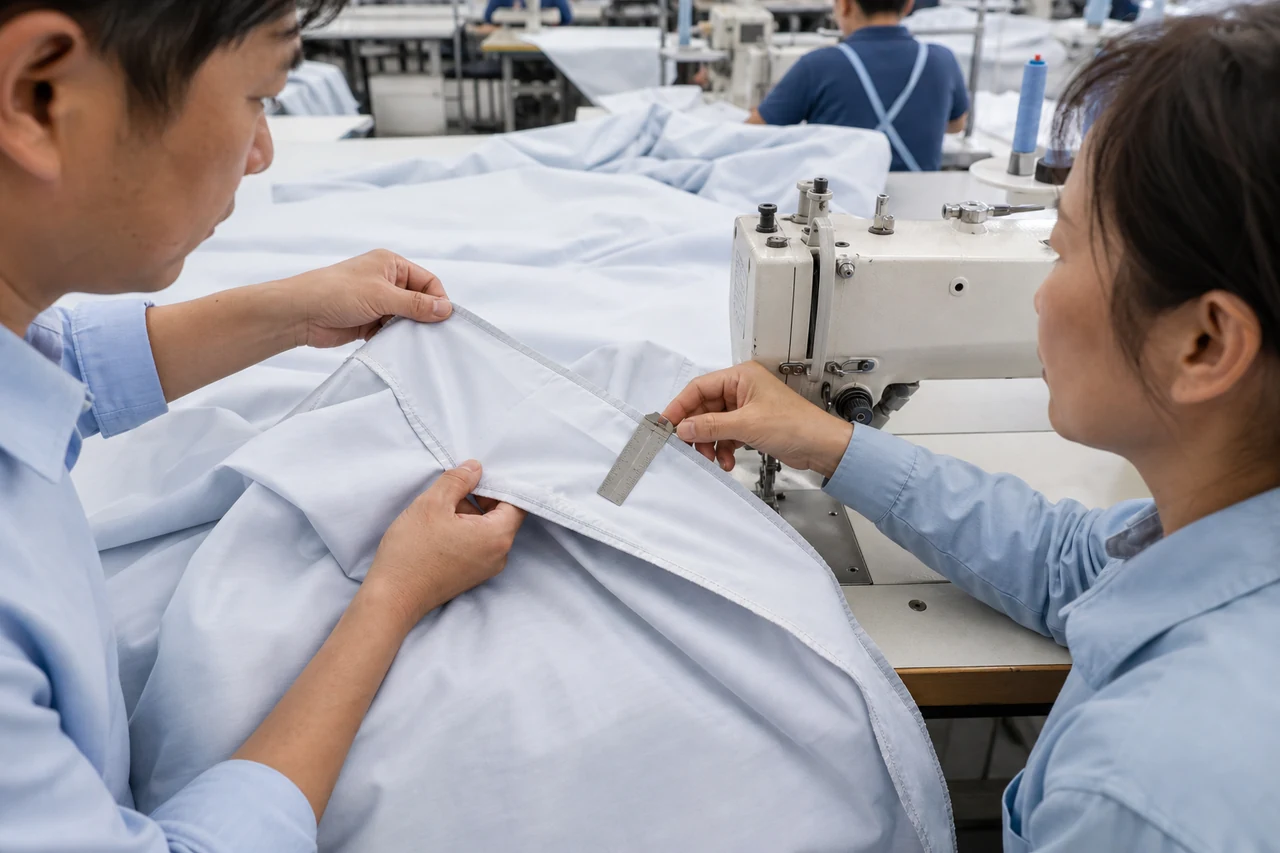

Stop equipment and move the piece to a safe inspection surface. Measure accessible seam tails, open sections or approved witness samples without pulling the fabric out of shape. Use a suitable seam gauge or rule and record the position. Where the allowance is enclosed, define a small destructive sample plan or use line-retained construction pieces; do not cut random finished goods without authorization. The inspection-stage guide helps place each check where correction still has value.

Map minimum, maximum and repeated drift rather than averaging away a narrow zone. Review raw-edge capture, overlock coverage, trimming consistency, loose fibers, seam shadow and unintended notches at the same positions. When narrow allowance appears, trace the time window, operator, machine, guide and cut bundle before deciding rework scope. Preserve acceptable and affected samples so the correction is evaluated against the same construction.

• Stop machinery and use a separate safe measurement surface.
• Plan witness or destructive samples for enclosed seams.
• Map local minimum and repeated drift instead of only averages.
• Trace machine, operator, guide and bundle before disposition.

4. Review finished appearance and post-care behavior

Hidden allowance must support the finished construction route

Turn, fill or fit the product as intended and review seam line, puckering, bulk, corner shape, piping profile, zipper operation and any visible edge shadow. A generous allowance can create unwanted bulk while a narrow one may fail to remain captured; the approved target balances the specific layers and finish. Use the post-laundering seam-puckering guide to keep appearance findings separate from allowance measurements.

Process samples through the agreed care route, condition them and repeat finished measurements and seam review. Where appropriate, open planned samples after care to inspect fraying, edge containment and stitch-line relationship. Do not describe a visual wash trial as a seam-strength result. If strength or slippage evidence is required, use a defined method and consult the seam slippage and strength guide.

• Inspect allowance effects in the completed product assembly.
• Repeat appearance and measurement after the named care route.
• Use planned openings to examine post-care edge containment.
• Keep allowance, appearance and strength conclusions separate.

5. Sample bulk across lines and preserve corrective evidence

Hidden construction needs time-window and line coverage

Stratify checks by size, seam code, cutting bundle, sewing line, operator or time window when traceability permits. Combine non-destructive finished checks with the approved witness or destructive sample plan. Record inspected positions and actual measurements rather than a single pass mark. Connect findings to the final inspection checklist so any opened samples and replacement quantities are reconciled before shipment.

Retain seam maps, first pieces, measurement sheets, acceptable and affected construction samples, corrective action and care results. Reopen the seam approval when fabric weight, coating, layer count, piping, closure, machine attachment or trim method changes. Buyers can review the quality-control route, request a production-representative sample and state critical seam zones in the buying brief. This preserves hidden workmanship as verifiable evidence rather than a late destructive surprise.

• Cover critical seam codes, bundles, lines and time windows.
• Reconcile destructively opened samples before pack release.
• Retain first-piece, affected and corrected construction evidence.
• Reapprove seams after material, layer or equipment changes.
